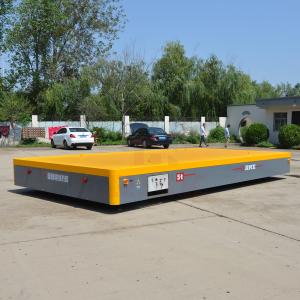

5 Tons Material Handling Motorized Transfer Trolleys Wireless Remote
Henan Remarkable Intelligent Technology Co., Ltd.. Is Specializing In The Design And Manufacture Of Heavy Material Transport System To Solve Every Material Handling Requirement. 5 Tons Material Handling Motorized Transfer Trolleys Is Used To Transport Workshop Or Warehouse Materials.
As The Size Of The Transported Goods Is Relatively Large, We Have Designed This Kind Of Trackless Transfer Vehicle With Stable Operation, Safe And Flexible Transfer Of Goods.
Uses Of Heavy Industrial Transfer Carts:
For Horizontal Load Transfers Of A Wide Range Of Material, We Have The Heavy Duty, High Quality Transfer Cart Solution You Need. Transfer Carts Are Used: To Carry Loads Along Assembly Lines; Transfer Material From One Work Station To The Next; Store And Transport An Entire Shift Worth Of Production. They Can Even Be Used As A Stable Yet Moveable Machine Base.
| Technical parameters for trackless electric transfer carts |
| rated load(t) | 5 | 10 | 15 | 20 | 30 | 40 | 50 |
| impacted rated load(t) | 7.5 | 15 | 22.5 | 30 | 45 | 60 | 75 |
| structure of frame | steel plates welded, beam structure |
| max. wheel load(t) | 2.8 | 4.3 | 4.8 | 5.6 | 7.7 | 10 | 12 |
| ground requirement | cement floor | steel plate ground |
| table size(mm) | 3000×2000 | 3600×2000 | 4000×2200 | 4500×2200 | 5000×2200 | 5500×2300 | 6000×2300 |
| height of the whole cart(mm) | 450 | 530 | 600 | 600 | 650 | 700 | 700 |
| ground clearance(mm) | 50 |
| wheels base(mm) | 1500 | 1700 | 1800 |
| axles distance(mm) | 2500 | 3100 | 3400 | 3900 | 4300 | 4800 | 5200 |
| turning radius(mm) | 2501 | 3101 | 3401 | 3901 | 4301 | 4801 | 5201 |
| turning type | turning while driving with no stop |
| control method for turning | control button |
| turning structure | mechanical |
| motor power(Kw) | 3.5 | 5 | 6 | 7 | 10 | 12 | 15 |
| wheel diameter(mm) | 300 x 4 | 350 x 4 | 400 x 4 | 400 x 6 | 500 x 6 |
| wheel material | ZG55+hydropur ture |
| running speed(m/min) | 0-20 |
| brake principle | electric magnetic brake |
| operation method | with wire or no wire |
| battery maintenance | free of maintenance |
| charger's installation | installed on cart | split-type |
| radar control | 3-0.3m, automatic stop for obstacles |
| warning equipment | sound and light |
| other functions | turning light, night light and power display |
5 Tons Material Handling Motorized Transfer Trolleys Is One Kind Of Transfer Equipment For Steel Cage,Rebar Cage,Steel Slab, Steel Coil, Mold, Pipe And Other Materials Handling In Workshop That It Can Move Freely From Bay To Bay On The Cement Floor, From Production Line To Warehouse.This Kind Of Fully Steerable Battey Transfer Cart Improves The Efficiency Of Transshipment And Saves Labor Cost,It Is Widely Used In Steel Plant, Coil Production Workshop, Warehouse Materials Transportation, Steel Plate Production Line, Mold Workshop Etc.We Can Design Hydraulic Lifting Device,Scissor Lifting Device, V Shape Supporting,Manual Hydraulic Outrigger,Add Rubber Pad On The Car's Table According To Client's Transportation Requirements.
